Arched window header

Jigga 2022-11-14 22:15:34

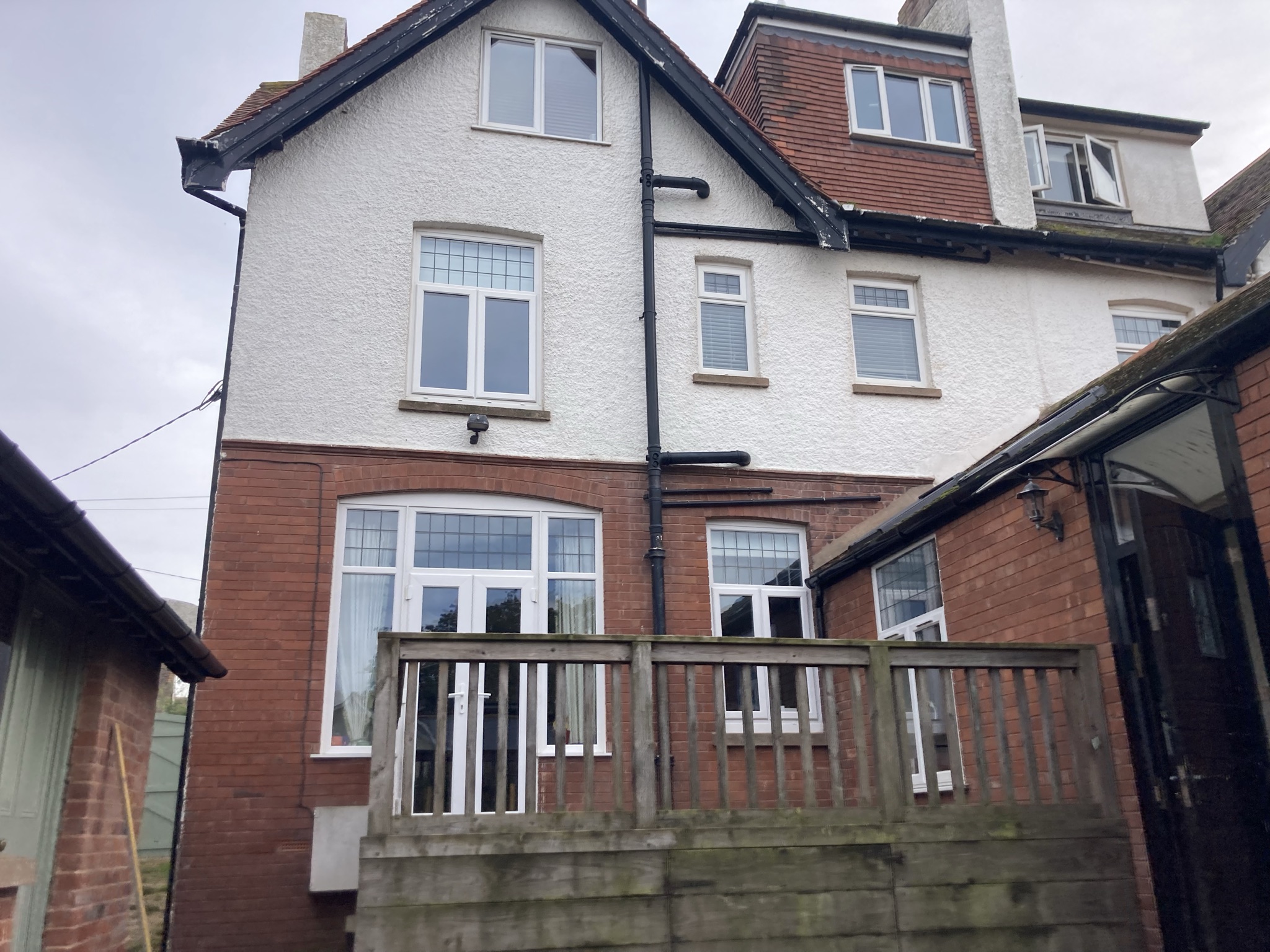

How can we easily create an arched window opening with a square headed window?262463_1668460521_img_6553.jpeg


madoniaivan 2022-11-15 10:30:53

Hello Sir
Whenever you need a window, a door , a particular parametric object which is not already available on the Object library, you can always access the related object editor and create a custom model.
in the attached image you can find the procedure to access the editor e the general steps you have to complete to obtain the custom model.
at the following link you will also find a quick videotutorial:

and here:

a link to a couple of model I just created that resemble the windows you need (you can download it and modify the measures according to your project requirements)



Jigga 2022-11-18 22:35:20

Thank you, very helpful.


madoniaivan 2022-11-21 09:47:28


I'm happy to help
